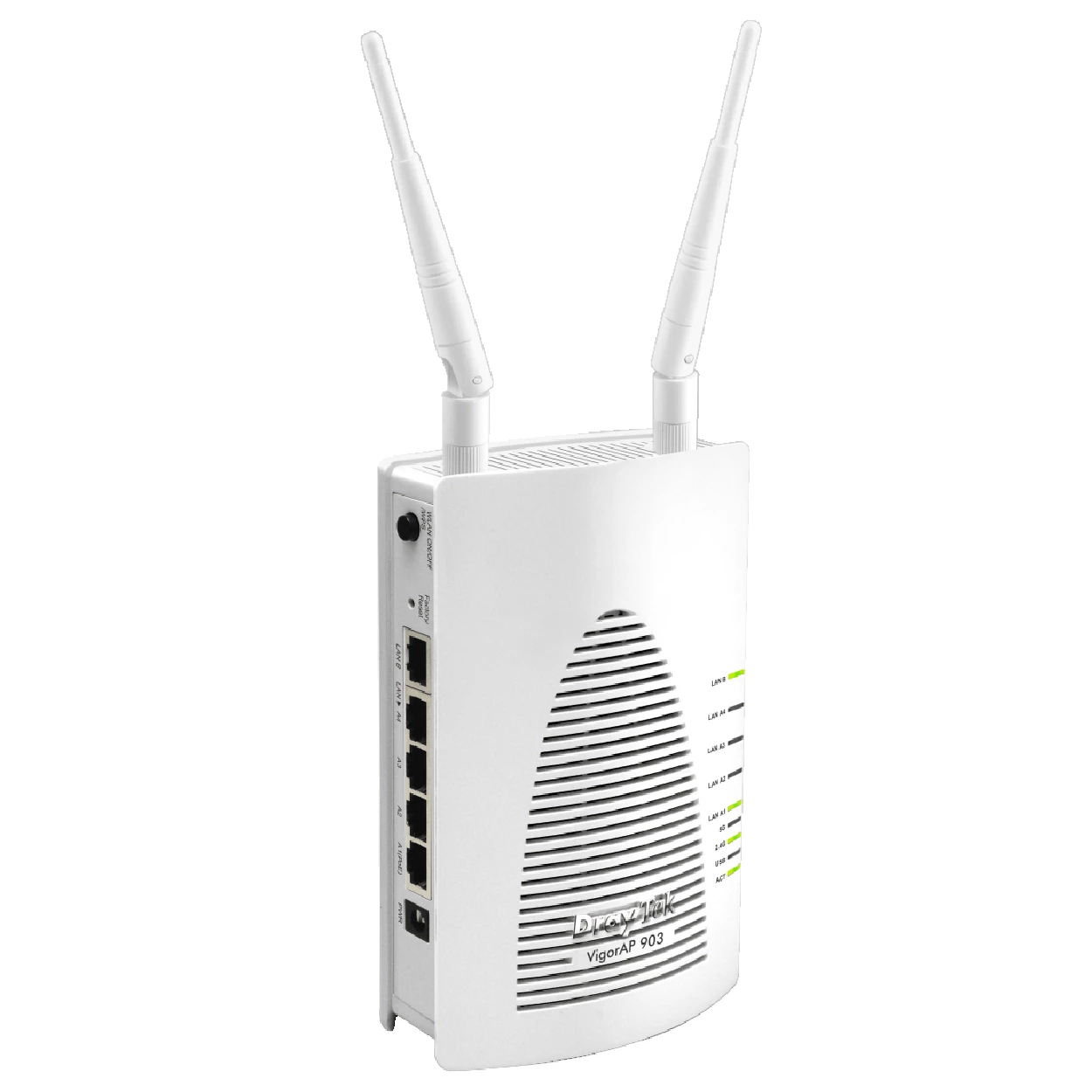

VigorAP 903 is a high-performance Mesh Wireless solution, designed to expand the wireless coverage, eliminate Wi-Fi dead zones and significantly reduce the cost of network deployments. It can also be used as a traditional access point either managed or stand-alone so has the flexibility to be used how you need it.

The VigorAP 903 is a dual-band 802.11ac Wave 2 Mesh Wireless solution, designed to eliminate wireless dropouts, stuttering videos, slow download speeds, poor signal and Wi-Fi dead zones. One access point acts as the controller (Mesh root) and in total, up to 8 access points create an easy to manage wireless mesh. Extend coverage without running expensive cabling.

Physical Interfaces/Controls

• 5 x Gigabit Ethernet LAN Ports
• USB 2.0 Port
• WLAN On/Off & WPS Button
• Factory Reset Button
• 2 x Dual-Band Omni-directional RP-SMA Antennae

Wireless Performance

• AC1300 Class Wireless Access Point
• 5GHz: PHY Rate 866Mb/s
• 2.4GHz: PHY Rate 400Mb/s

Wireless LAN Compatibility

• IEEE 802.11ac (Wave 1 & 2) / a / b / g / n
• Frequency Band 2.4 GHz & 5.8Ghz – Simultaneous Operation
• Up to 64 clients per radio

2.4GHz Wireless LAN Features

• 802.11b, 802.11g, 802.11n
• 20 / 40 MHz
• Up to 400Mb/s total Wi-Fi throughput (PHY Rate):
• 802.11b/g/n: 300Mb/s PHY rate (150Mb/s per Spatial Stream)
• 256-QAM: 400Mb/s PHY rate (200Mb/s per Spatial Stream)

5Ghz Wireless LAN Features

• 802.11ac (Wave 1 & 2) / 802.11n / 802.11a
• 20 / 40 / 80 MHz
• Extended 5Ghz Band – Channels 36-48, 52-64, 100-140
• DFS/TPC Support
• Multi-User MIMO
• Up to 866Mb/s total Wi-Fi throughput (PHY Rate):
• 802.11a/n: 300Mb/s PHY rate (150Mb/s per Spatial Stream)
• 802.11ac: 866Mb/s PHY rate (433Mb/s per Spatial Stream)

Security Features

• Wireless Encryption : WPA2 (802.11i) Encryption
• Also supports WPA/WEP (Not recommended)
• Built in 802.1x server (PEAP / EAP-TLS)
• 802.1x RADIUS Proxy (PEAP / EAP-TLS)
• PMK Caching & Pre-authentication
• Wireless Client Isolation
• Control Isolation of 2.4GHz and 5GHz bands
• Hidden SSIDs (Selectable)
• WPS – WiFi Protected Setup
• MAC Address Filtering (ACL) – Up to 256 entries
• Mobile Device Management
• EAPOL Key Retry – Disable EAPOL Key Retry to protect unpatched WLAN clients from KRACK

Wireless Control Features

• Wireless Client Status List in WUI
• Client Limit per radio
• Client Limit per SSID
• Up to four distinct SSIDs (for VLANs) for each frequency band (2.4/5Ghz)
• MAC Cloning
• Built-in DHCP Server & DHCP Relay
• Trusted DHCP Server IP for WLAN – Only specified DHCP server IP can assign IP addresses to WLAN clients
• 802.1q VLAN
• Station Control – Time limit wireless connectivity per Station (e.g. 1 hour) & set allowed Reconnection time (e.g. 1 day)

Wireless Performance Optimisation

• Airtime Fairness
• Band Steering
• AP-Assisted Client Mobility
• WMM (Wireless MultiMedia)
• Bandwidth Management (Per Station / Per SSID)

Diagnostic Features

• System Log
• Speed Test
• Traffic Graph – AP Traffic & Per Station
• Data Flow Monitor – View live traffic usage per WLAN client
• Wireless LAN Statistics
• Interference Monitor – Built-in Site Surveyor

Management

• Web Interface (HTTP/HTTPS)
• DHCP Client
• TR-069 Control (For VigorACS or other TR-069 platform)
• CLI (Command Line Interface) – Telnet
• Firmware upgrade by TR-069/HTTP
• Central AP Management (from compatible DrayTek router/controller)
• SNMP v2, v2c, v3
• Management VLAN
• LED Control (enable/disable/schedule)
• Configuration File Export (with password) & Import
• Wireless Auto On/Off – Sound alert / Disable Wireless if VigorAP is unable to ping specified host

Power Requirements

• Maximum Power Consumption: 12 Watt
• DC 12V via external 100-240v AC/DC PSU (supplied)
• 802.3af PoE via LAN port A1. Requires PoE injector or a PoE switch such as the VigorSwitch P2121

Environmental & Physical

• Operating Temperature : 0 ° C to 45 ° C
• Operating Humidity: 10% to 90% (Non-condensing)
• Physical Dimensions: 107mm (W) x 167mm (H) x 45mm (D)
• Physical Dimensions with Aerials: 107mm (W) x 305mm (H) x 45mm (D)
• Weight : 370g
• Fitting: Wall Mountable or Free Standing
• Pack Contents: VigorAP 903 access point, two RP-SMA Omnidirectional aerials, Quick Start Guide, DC 12V PSU
• Warranty: Two (2) Years RTB
